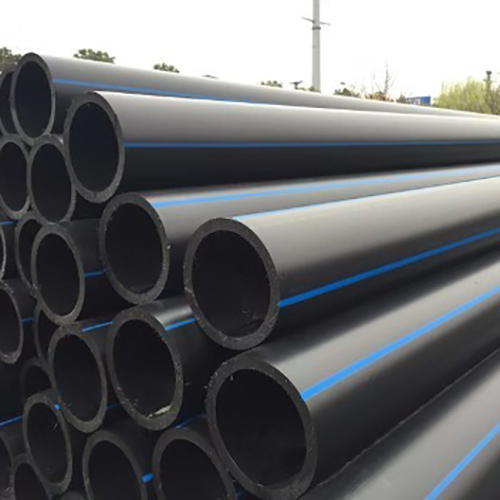

HDPE Pipes

Get a Price/Quote

HDPE Pipes Specification

Bend Radius
20 to 30 times outer diameter (depends on pipe size)

Thread Type
Not Applicable (generally non-threaded)

Diameter
20 mm to 1000 mm

Coating Type
Uncoated, UV Stabilized

Temperature Range
-40C to +60C

Tolerance
1% or as per standard

Flexibility
Excellent (suitable for curved alignments)

Tensile Strength
>= 19 MPa

Sealing Type
Heat Fusion Joint, Rubber Ring Joint

Connection Type
Socket, Flanged, Welded

Yield Strength
>= 19 MPa

Product Type
HDPE Pipe

Material
High Density Polyethylene (HDPE)

Connection
Butt Fusion, Electrofusion, Flange Joint, Compression Fittings

Shape
Round

Standard
IS 4984:2016, ISO 4427

Surface Treatment
Plain, UV-Resistant

Outer Diameter
20 mm to 1000 mm

Section Shape
Cylindrical

Length
Standard 6m/12m or coil form up to 200m (small diameters)

Thickness
2.0 mm to 60 mm (depending on class/diameter)

Color
Black with Blue Stripes

Usage
Water Supply, Irrigation, Sewerage, Gas, Industrial Application

Rated Pressure
PN 2.5 to PN 16 (2.5 bar to 16 bar)

Material Grade
PE63, PE80, PE100

Application
Potable Water Pipeline, Gas Distribution, Agricultural Irrigation, Industrial Effluent, Sewerage

Standards Certification
Complies with ISO, BIS, DIN standards

Life Expectancy
Up to 50 years under normal conditions

Electrical Insulation
Excellent (non-conductive)

Environmental Impact
Non-toxic, recyclable material

Permeability
Excellent, virtually zero water permeability

Manufacturing Process
Extrusion

Impact Resistance
Very high, suitable for underground installation

Abrasion Resistance
Excellent for slurry lines and heavy-duty use

Burst Pressure
> 2.5 times rated pressure

Hydraulic Smoothing Factor
Very low (reduces friction losses)

Weight
Lightweight compared to metal pipes

Chemical Resistance
Highly resistant to a wide range of chemicals

UV Resistance
UV Stabilized for outdoor exposure

HDPE Pipes About

Highly Recommended and Blue-ribbon HDPE Pipes, engineered for enviable chemical resistance and electrical insulation, cater to the most demanding industrial and municipal applications. Sought-after for their impact resistance and UV stabilization, these pipes perform excellently outdoors and underground. The lightweight yet robust design, enhanced by an exceptionally low hydraulic smoothing factor, ensures effortless installation and minimal friction losses. Completely customizable, our HDPE pipes are available in varying diameters and thicknesses, ensuring a perfect fit for any project. Order Today-certified to ISO, BIS, and DIN standards, and enjoy a pipeline solution with an unsurpassed life span.

Comprehensive Features and Versatile Applications

HDPE Pipes offer a host of other sought-after attributes, such as abrasion resistance, non-toxicity, and adaptability to both potable water and industrial effluent systems. Highly flexible, these pipes are used for water supply, gas distribution, agricultural irrigation, and sewerage. Advantages include leak-proof fusion joints, excellent durability, and virtually zero water permeability, delivering peace of mind for long-term underground or outdoor installations.

Sample Policy and Nationwide Drop-Off Services

Sample requests for HDPE pipes are handled promptly to ensure client satisfaction before a large order. Our main domestic market covers all of India, with delivery managed through reliable transport services for timely drop-off at your specified location. Each pipe is packed securely, using standard safety protocols, whether in straight lengths or coils, to safeguard product quality during transit and ensure swift installation upon arrival.

FAQ's of HDPE Pipes:

Q: How can I customize HDPE pipes for my specific application?

A: We offer customizable HDPE pipes in various diameters, thicknesses, and connection types. Specify your requirements when ordering to ensure the pipes meet your project's demands.

Q: What are the key benefits of using HDPE pipes over metal alternatives?

A: HDPE pipes are lightweight, offer excellent chemical resistance, and have high impact and abrasion resistance, making them more durable and easier to install than traditional metal pipes. Their flexibility also allows for curved alignments.

Q: Where are HDPE pipes typically installed?

A: These pipes are suitable for underground installations, exposed outdoor use (due to UV stabilization), and diverse sectors like potable water supply, gas distribution, sewerage, agricultural irrigation, and industrial effluent management.

Q: What is the process for connecting HDPE pipes?

A: HDPE pipes can be joined using butt fusion, electrofusion, flange joints, or compression fittings, offering secure connections based on your specific system requirements.

Q: How long do HDPE pipes last and what certifications do they meet?

A: Under normal conditions, HDPE pipes have a life expectancy of up to 50 years. They comply with leading standards such as ISO 4427, IS 4984:2016, BIS, and DIN.
